Mobject¶

Qualified name: manim.mobject.mobject.Mobject

class Mobject(color=ManimColor('#FFFFFF'), name=None, dim=3, target=None, z_index=0)[source]¶

Bases: object

Mathematical Object: base class for objects that can be displayed on screen.

There is a compatibility layer that allows for getting and setting generic attributes with get_* and set_* methods. See set() for more details.

Parameters:

color (ParsableManimColor | list[ParsableManimColor])
name (str | None)
dim (int)
z_index (float)

submobjects¶

The contained objects.

Type:: List[Mobject]

points¶

The points of the objects.

See also

VMobject

Type:: numpy.ndarray

Methods

`add`	Add mobjects as submobjects.
`add_animation_override`	Add an animation override.
`add_background_rectangle`	Add a BackgroundRectangle as submobject.
`add_background_rectangle_to_family_members_with_points`
`add_background_rectangle_to_submobjects`
`add_n_more_submobjects`
`add_to_back`	Add all passed mobjects to the back of the submobjects.
`add_updater`	Add an update function to this mobject.
`align_data`	Aligns the family structure and data of this mobject with another mobject.
`align_on_border`	Direction just needs to be a vector pointing towards side or corner in the 2d plane.
`align_points`
`align_points_with_larger`
`align_submobjects`
`align_to`	Aligns mobject to another `Mobject` in a certain direction.
`animation_override_for`	Returns the function defining a specific animation override for this class.
`apply_complex_function`	Applies a complex function to a `Mobject`.
`apply_function`
`apply_function_to_position`
`apply_function_to_submobject_positions`
`apply_matrix`
`apply_over_attr_arrays`
`apply_points_function_about_point`
`apply_to_family`	Apply a function to `self` and every submobject with points recursively.
`arrange`	Sorts `Mobject` next to each other on screen.
`arrange_in_grid`	Arrange submobjects in a grid.
`arrange_submobjects`	Arrange the position of `submobjects` with a small buffer.
`become`	Edit points, colors and submobjects to be identical to another `Mobject`
`center`	Moves the center of the mobject to the center of the scene.
`clear_updaters`	Remove every updater.
`copy`	Create and return an identical copy of the `Mobject` including all `submobjects`.
`fade`
`fade_to`
`family_members_with_points`	Filters the list of family members (generated by `get_family()`) to include only mobjects with points.
`flip`	Flips/Mirrors an mobject about its center.
`generate_points`	Initializes `points` and therefore the shape.
`generate_target`
`get_all_points`	Return all points from this mobject and all submobjects.
`get_array_attrs`
`get_bottom`	Get bottom Point3Ds of a box bounding the `Mobject`
`get_boundary_point`
`get_center`	Get center Point3Ds
`get_center_of_mass`
`get_color`	Returns the color of the `Mobject`
`get_coord`	Meant to generalize `get_x`, `get_y` and `get_z`
`get_corner`	Get corner Point3Ds for certain direction.
`get_critical_point`	Picture a box bounding the `Mobject`.
`get_edge_center`	Get edge Point3Ds for certain direction.
`get_end`	Returns the point, where the stroke that surrounds the `Mobject` ends.
`get_extremum_along_dim`
`get_family`	Lists all mobjects in the hierarchy (family) of the given mobject, including the mobject itself and all its submobjects recursively.
`get_family_updaters`
`get_group_class`
`get_image`
`get_left`	Get left Point3Ds of a box bounding the `Mobject`
`get_merged_array`	Return all of a given attribute from this mobject and all submobjects.
`get_midpoint`	Get Point3Ds of the middle of the path that forms the `Mobject`.
`get_mobject_type_class`	Return the base class of this mobject type.
`get_nadir`	Get nadir (opposite the zenith) Point3Ds of a box bounding a 3D `Mobject`.
`get_num_points`
`get_pieces`
`get_point_mobject`	The simplest `Mobject` to be transformed to or from self.
`get_points_defining_boundary`
`get_right`	Get right Point3Ds of a box bounding the `Mobject`
`get_start`	Returns the point, where the stroke that surrounds the `Mobject` starts.
`get_start_and_end`	Returns starting and ending point of a stroke as a `tuple`.
`get_time_based_updaters`	Return all updaters using the `dt` parameter.
`get_top`	Get top Point3Ds of a box bounding the `Mobject`
`get_updaters`	Return all updaters.
`get_x`	Returns x Point3D of the center of the `Mobject` as `float`
`get_y`	Returns y Point3D of the center of the `Mobject` as `float`
`get_z`	Returns z Point3D of the center of the `Mobject` as `float`
`get_z_index_reference_point`
`get_zenith`	Get zenith Point3Ds of a box bounding a 3D `Mobject`.
`has_no_points`	Check if `Mobject` does not contains points.
`has_points`	Check if `Mobject` contains points.
`has_time_based_updater`	Test if `self` has a time based updater.
`init_colors`	Initializes the colors.
`insert`	Inserts a mobject at a specific position into self.submobjects
`interpolate`	Turns this `Mobject` into an interpolation between `mobject1` and `mobject2`.
`interpolate_color`
`invert`	Inverts the list of `submobjects`.
`is_off_screen`
`length_over_dim`	Measure the length of an `Mobject` in a certain direction.
`match_color`	Match the color with the color of another `Mobject`.
`match_coord`	Match the Point3Ds with the Point3Ds of another `Mobject`.
`match_depth`	Match the depth with the depth of another `Mobject`.
`match_dim_size`	Match the specified dimension with the dimension of another `Mobject`.
`match_height`	Match the height with the height of another `Mobject`.
`match_points`	Edit points, positions, and submobjects to be identical to another `Mobject`, while keeping the style unchanged.
`match_updaters`	Match the updaters of the given mobject.
`match_width`	Match the width with the width of another `Mobject`.
`match_x`	Match x coord.
`match_y`	Match y coord.
`match_z`	Match z coord.
`move_to`	Move center of the `Mobject` to certain Point3D.
`next_to`	Move this `Mobject` next to another's `Mobject` or Point3D.
`nonempty_submobjects`
`null_point_align`	If a `Mobject` with points is being aligned to one without, treat both as groups, and push the one with points into its own submobjects list.
`point_from_proportion`
`pose_at_angle`
`proportion_from_point`
`push_self_into_submobjects`
`put_start_and_end_on`
`reduce_across_dimension`	Find the min or max value from a dimension across all points in this and submobjects.
`remove`	Remove `submobjects`.
`remove_updater`	Remove an updater.
`repeat`	This can make transition animations nicer
`repeat_submobject`
`replace`
`rescale_to_fit`
`reset_points`	Sets `points` to be an empty array.
`restore`	Restores the state that was previously saved with `save_state()`.
`resume_updating`	Enable updating from updaters and animations.
`reverse_points`

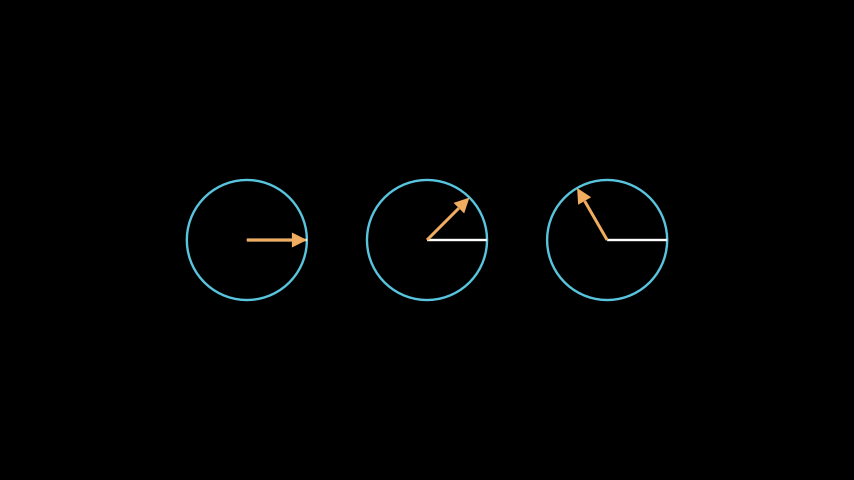

`rotate`	Rotates the `Mobject` around a specified axis and point.
`rotate_about_origin`	Rotates the `Mobject` about the ORIGIN, which is at [0,0,0].
`save_image`	Saves an image of only this `Mobject` at its position to a png file.
`save_state`	Save the current state (position, color & size).
`scale`	Scale the size by a factor.
`scale_to_fit_depth`	Scales the `Mobject` to fit a depth while keeping width/height proportional.
`scale_to_fit_height`	Scales the `Mobject` to fit a height while keeping width/depth proportional.
`scale_to_fit_width`	Scales the `Mobject` to fit a width while keeping height/depth proportional.
`set`	Sets attributes.
`set_color`	Condition is function which takes in one arguments, (x, y, z).
`set_color_by_gradient`
`set_colors_by_radial_gradient`
`set_coord`
`set_default`	Sets the default values of keyword arguments.
`set_submobject_colors_by_gradient`
`set_submobject_colors_by_radial_gradient`
`set_x`	Set x value of the center of the `Mobject` (`int` or `float`)
`set_y`	Set y value of the center of the `Mobject` (`int` or `float`)
`set_z`	Set z value of the center of the `Mobject` (`int` or `float`)
`set_z_index`	Sets the `Mobject`'s `z_index` to the value specified in z_index_value.
`set_z_index_by_z_Point3D`	Sets the `Mobject`'s z Point3D to the value of `z_index`.
`shift`	Shift by the given vectors.
`shift_onto_screen`
`show`
`shuffle`	Shuffles the list of `submobjects`.
`shuffle_submobjects`	Shuffles the order of `submobjects`
`sort`	Sorts the list of `submobjects` by a function defined by `submob_func`.
`sort_submobjects`	Sort the `submobjects`
`space_out_submobjects`
`split`
`stretch`
`stretch_about_point`
`stretch_to_fit_depth`	Stretches the `Mobject` to fit a depth, not keeping width/height proportional.
`stretch_to_fit_height`	Stretches the `Mobject` to fit a height, not keeping width/depth proportional.
`stretch_to_fit_width`	Stretches the `Mobject` to fit a width, not keeping height/depth proportional.
`surround`
`suspend_updating`	Disable updating from updaters and animations.
`throw_error_if_no_points`
`to_corner`	Moves this `Mobject` to the given corner of the screen.
`to_edge`	Moves this `Mobject` to the given edge of the screen, without affecting its position in the other dimension.
`to_original_color`
`update`	Apply all updaters.

Attributes

`always`	Call a method on a mobject every frame.
`animate`	Used to animate the application of any method of `self`.
`animation_overrides`
`depth`	The depth of the mobject.
`height`	The height of the mobject.
`width`	The width of the mobject.

classmethod _add_intrinsic_animation_overrides()[source]¶

Initializes animation overrides marked with the override_animation() decorator.

Return type:: None

_assert_valid_submobjects(submobjects)[source]¶

Check that all submobjects are actually instances of Mobject, and that none of them is self (a Mobject cannot contain itself).

This is an auxiliary function called when adding Mobjects to the submobjects list.

This function is intended to be overridden by subclasses such as VMobject, which should assert that only other VMobjects may be added into it.

Parameters:

submobjects (Iterable[Mobject]) – The list containing values to validate.

Returns:

The Mobject itself.

Return type:

Mobject

Raises:

TypeError – If any of the values in submobjects is not a Mobject.
ValueError – If there was an attempt to add a Mobject as its own submobject.

add(*mobjects)[source]¶

Add mobjects as submobjects.

The mobjects are added to submobjects.

Subclasses of mobject may implement + and += dunder methods.

Parameters:

mobjects (Mobject) – The mobjects to add.

Returns:

self

Return type:

Mobject

Raises:

ValueError – When a mobject tries to add itself.
TypeError – When trying to add an object that is not an instance of Mobject.

Notes

A mobject cannot contain itself, and it cannot contain a submobject more than once. If the parent mobject is displayed, the newly-added submobjects will also be displayed (i.e. they are automatically added to the parent Scene).

See also

remove(), add_to_back()

Examples

>>> outer = Mobject()
>>> inner = Mobject()
>>> outer = outer.add(inner)

Duplicates are not added again:

>>> outer = outer.add(inner)
>>> len(outer.submobjects)
1

Only Mobjects can be added:

>>> outer.add(3)
Traceback (most recent call last):
...
TypeError: Only values of type Mobject can be added as submobjects of Mobject, but the value 3 (at index 0) is of type int.

Adding an object to itself raises an error:

>>> outer.add(outer)
Traceback (most recent call last):
...
ValueError: Cannot add Mobject as a submobject of itself (at index 0).

A given mobject cannot be added as a submobject twice to some parent:

>>> parent = Mobject(name="parent")
>>> child = Mobject(name="child")
>>> parent.add(child, child)
[...] WARNING  ...
parent
>>> parent.submobjects
[child]

classmethod add_animation_override(animation_class, override_func)[source]¶

Add an animation override.

This does not apply to subclasses.

Parameters:

animation_class (type[Animation]) – The animation type to be overridden
override_func (FunctionOverride) – The function returning an animation replacing the default animation. It gets passed the parameters given to the animation constructor.

Raises:

MultiAnimationOverrideException – If the overridden animation was already overridden.

Return type:

None

add_background_rectangle(color=None, opacity=0.75, **kwargs)[source]¶

Add a BackgroundRectangle as submobject.

The BackgroundRectangle is added behind other submobjects.

This can be used to increase the mobjects visibility in front of a noisy background.

Parameters:

color (ParsableManimColor | None) – The color of the BackgroundRectangle
opacity (float) – The opacity of the BackgroundRectangle
kwargs – Additional keyword arguments passed to the BackgroundRectangle constructor

Returns:

self

Return type:

Mobject

See also

add_to_back(), BackgroundRectangle

add_to_back(*mobjects)[source]¶

Add all passed mobjects to the back of the submobjects.

If submobjects already contains the given mobjects, they just get moved to the back instead.

Parameters:: mobjects (Mobject) – The mobjects to add.
Returns:: self
Return type:: Mobject

Note

Technically, this is done by adding (or moving) the mobjects to the head of submobjects. The head of this list is rendered first, which places the corresponding mobjects behind the subsequent list members.

Raises:

ValueError – When a mobject tries to add itself.
TypeError – When trying to add an object that is not an instance of Mobject.

Parameters:

mobjects (Mobject)

Return type:

Self

Notes

See also

remove(), add()

add_updater(update_function, index=None, call_updater=False)[source]¶

Add an update function to this mobject.

Update functions, or updaters in short, are functions that are applied to the Mobject in every frame.

Parameters:

update_function (Updater) – The update function to be added. Whenever update() is called, this update function gets called using self as the first parameter. The updater can have a second parameter dt. If it uses this parameter, it gets called using a second value dt, usually representing the time in seconds since the last call of update().
index (int | None) – The index at which the new updater should be added in self.updaters. In case index is None the updater will be added at the end.
call_updater (bool) – Whether or not to call the updater initially. If True, the updater will be called using dt=0.

Returns:

self

Return type:

Mobject

Examples

Example: NextToUpdater ¶

from manim import *

class NextToUpdater(Scene):
    def construct(self):
        def update_label(mobject):
            mobject.set_value(dot.get_center()[0])
            mobject.next_to(dot)

        dot = Dot(RIGHT*3)
        label = DecimalNumber()
        label.add_updater(update_label)
        self.add(dot, label)

        self.play(Rotating(dot, angle=TAU, about_point=ORIGIN, run_time=TAU, rate_func=linear))

class NextToUpdater(Scene):
    def construct(self):
        def update_label(mobject):
            mobject.set_value(dot.get_center()[0])
            mobject.next_to(dot)

        dot = Dot(RIGHT*3)
        label = DecimalNumber()
        label.add_updater(update_label)
        self.add(dot, label)

        self.play(Rotating(dot, angle=TAU, about_point=ORIGIN, run_time=TAU, rate_func=linear))

Example: DtUpdater ¶

from manim import *

class DtUpdater(Scene):
    def construct(self):
        square = Square()

        #Let the square rotate 90° per second
        square.add_updater(lambda mobject, dt: mobject.rotate(dt*90*DEGREES))
        self.add(square)
        self.wait(2)

class DtUpdater(Scene):
    def construct(self):
        square = Square()

        #Let the square rotate 90° per second
        square.add_updater(lambda mobject, dt: mobject.rotate(dt*90*DEGREES))
        self.add(square)
        self.wait(2)

align_data(mobject, skip_point_alignment=False)[source]¶

Aligns the family structure and data of this mobject with another mobject.

Afterwards, the two mobjects will have the same number of submobjects (see align_submobjects()) and the same parent structure (see null_point_align()). If skip_point_alignment is False, they will also have the same number of points (see align_points()).

Parameters:

mobject (Mobject) – The other mobject this mobject should be aligned to.
skip_point_alignment (bool) – Controls whether or not the computationally expensive point alignment is skipped (default: False).

Return type:

None

Note

This method is primarily used internally by become() and the Transform animation to ensure that mobjects are structurally compatible before transformation.

Examples

>>> from manim import Rectangle, Line, ORIGIN, RIGHT
>>> rect = Rectangle(width=4.0, height=2.0, grid_xstep=1.0, grid_ystep=0.5)
>>> line = Line(start=ORIGIN,end=RIGHT)
>>> line.align_data(rect)
>>> len(line.get_family()) == len(rect.get_family())
True
>>> line.get_num_points() == rect.get_num_points()
True

align_on_border(direction, buff=0.5)[source]¶

Direction just needs to be a vector pointing towards side or corner in the 2d plane.

Parameters:

direction (Vector3DLike)
buff (float)

Return type:

Self

align_to(mobject_or_point, direction=array([0., 0., 0.]))[source]¶

Aligns mobject to another Mobject in a certain direction.

Examples: mob1.align_to(mob2, UP) moves mob1 vertically so that its top edge lines ups with mob2’s top edge.

Parameters:

mobject_or_point (Mobject | Point3DLike)
direction (Vector3DLike)

Return type:

Self

property always: Self¶

Call a method on a mobject every frame.

This is syntactic sugar for mob.add_updater(lambda m: m.method(*args, **kwargs), call_updater=True). Note that this will call the method immediately. If this behavior is not desired, you should use add_updater() directly.

Warning

Chaining of methods is allowed, but each method will be added as its own updater. If you are chaining methods, make sure they do not interfere with each other or you may get unexpected results.

Warning

always is not compatible with ValueTracker.get_value(), because the value will be computed once and then never updated again. Use add_updater() if you would like to use a ValueTracker to update the value.

Example

Example: AlwaysExample ¶

from manim import *

class AlwaysExample(Scene):
    def construct(self):
        sq = Square().to_edge(LEFT)
        t = Text("Hello World!")
        t.always.next_to(sq, UP)
        self.add(sq, t)
        self.play(sq.animate.to_edge(RIGHT))

class AlwaysExample(Scene):
    def construct(self):
        sq = Square().to_edge(LEFT)
        t = Text("Hello World!")
        t.always.next_to(sq, UP)
        self.add(sq, t)
        self.play(sq.animate.to_edge(RIGHT))

property animate: _AnimationBuilder | Self¶

Used to animate the application of any method of self.

Any method called on animate is converted to an animation of applying that method on the mobject itself.

For example, square.set_fill(WHITE) sets the fill color of a square, while square.animate.set_fill(WHITE) animates this action.

Multiple methods can be put in a single animation once via chaining:

self.play(my_mobject.animate.shift(RIGHT).rotate(PI))

Warning

Passing multiple animations for the same Mobject in one call to play() is discouraged and will most likely not work properly. Instead of writing an animation like

self.play(
    my_mobject.animate.shift(RIGHT), my_mobject.animate.rotate(PI)
)

make use of method chaining.

Keyword arguments that can be passed to Scene.play() can be passed directly after accessing .animate, like so:

self.play(my_mobject.animate(rate_func=linear).shift(RIGHT))

This is especially useful when animating simultaneous .animate calls that you want to behave differently:

self.play(
    mobject1.animate(run_time=2).rotate(PI),
    mobject2.animate(rate_func=there_and_back).shift(RIGHT),
)

See also

override_animate()

Examples

Example: AnimateExample ¶

from manim import *

class AnimateExample(Scene):
    def construct(self):
        s = Square()
        self.play(Create(s))
        self.play(s.animate.shift(RIGHT))
        self.play(s.animate.scale(2))
        self.play(s.animate.rotate(PI / 2))
        self.play(Uncreate(s))

class AnimateExample(Scene):
    def construct(self):
        s = Square()
        self.play(Create(s))
        self.play(s.animate.shift(RIGHT))
        self.play(s.animate.scale(2))
        self.play(s.animate.rotate(PI / 2))
        self.play(Uncreate(s))

Example: AnimateChainExample ¶

from manim import *

class AnimateChainExample(Scene):
    def construct(self):
        s = Square()
        self.play(Create(s))
        self.play(s.animate.shift(RIGHT).scale(2).rotate(PI / 2))
        self.play(Uncreate(s))

class AnimateChainExample(Scene):
    def construct(self):
        s = Square()
        self.play(Create(s))
        self.play(s.animate.shift(RIGHT).scale(2).rotate(PI / 2))
        self.play(Uncreate(s))

Example: AnimateWithArgsExample ¶

from manim import *

class AnimateWithArgsExample(Scene):
    def construct(self):
        s = Square()
        c = Circle()

        VGroup(s, c).arrange(RIGHT, buff=2)
        self.add(s, c)

        self.play(
            s.animate(run_time=2).rotate(PI / 2),
            c.animate(rate_func=there_and_back).shift(RIGHT),
        )

class AnimateWithArgsExample(Scene):
    def construct(self):
        s = Square()
        c = Circle()

        VGroup(s, c).arrange(RIGHT, buff=2)
        self.add(s, c)

        self.play(
            s.animate(run_time=2).rotate(PI / 2),
            c.animate(rate_func=there_and_back).shift(RIGHT),
        )

Warning

.animate: will interpolate the Mobject between its points prior to .animate and its points after applying .animate to it. This may result in unexpected behavior when attempting to interpolate along paths, or rotations (see rotate()). If you want animations to consider the points between, consider using ValueTracker with updaters instead (see add_updater()).

classmethod animation_override_for(animation_class)[source]¶

Returns the function defining a specific animation override for this class.

Parameters:: animation_class (type[Animation]) – The animation class for which the override function should be returned.
Returns:: The function returning the override animation or None if no such animation override is defined.
Return type:: Optional[Callable[[Mobject, …], Animation]]

apply_complex_function(function, *, about_point=None, about_edge=None)[source]¶

Applies a complex function to a Mobject. The x and y Point3Ds correspond to the real and imaginary parts respectively.

Example

Example: ApplyFuncExample ¶

from manim import *

class ApplyFuncExample(Scene):
    def construct(self):
        circ = Circle().scale(1.5)
        circ_ref = circ.copy()
        circ.apply_complex_function(
            lambda x: np.exp(x*1j)
        )
        t = ValueTracker(0)
        circ.add_updater(
            lambda x: x.become(circ_ref.copy().apply_complex_function(
                lambda x: np.exp(x+t.get_value()*1j)
            )).set_color(BLUE)
        )
        self.add(circ_ref)
        self.play(TransformFromCopy(circ_ref, circ))
        self.play(t.animate.set_value(TAU), run_time=3)

class ApplyFuncExample(Scene):
    def construct(self):
        circ = Circle().scale(1.5)
        circ_ref = circ.copy()
        circ.apply_complex_function(
            lambda x: np.exp(x*1j)
        )
        t = ValueTracker(0)
        circ.add_updater(
            lambda x: x.become(circ_ref.copy().apply_complex_function(
                lambda x: np.exp(x+t.get_value()*1j)
            )).set_color(BLUE)
        )
        self.add(circ_ref)
        self.play(TransformFromCopy(circ_ref, circ))
        self.play(t.animate.set_value(TAU), run_time=3)

Parameters:

function (Callable[[complex], complex])
about_point (Point3DLike | None)
about_edge (Vector3DLike | None)

Return type:

Self

apply_to_family(func)[source]¶

Apply a function to self and every submobject with points recursively.

Parameters:: func (Callable[[Mobject], None]) – The function to apply to each mobject. func gets passed the respective (sub)mobject as parameter.
Returns:: self
Return type:: Mobject

See also

family_members_with_points()

arrange(direction=array([1., 0., 0.]), buff=0.25, center=True, **kwargs)[source]¶

Sorts Mobject next to each other on screen.

Examples

Example: Example ¶

from manim import *

class Example(Scene):
    def construct(self):
        s1 = Square()
        s2 = Square()
        s3 = Square()
        s4 = Square()
        x = VGroup(s1, s2, s3, s4).set_x(0).arrange(buff=1.0)
        self.add(x)

class Example(Scene):
    def construct(self):
        s1 = Square()
        s2 = Square()
        s3 = Square()
        s4 = Square()
        x = VGroup(s1, s2, s3, s4).set_x(0).arrange(buff=1.0)
        self.add(x)

Parameters:

direction (Vector3DLike)
buff (float)
center (bool)

Return type:

Self

arrange_in_grid(rows=None, cols=None, buff=0.25, cell_alignment=array([0., 0., 0.]), row_alignments=None, col_alignments=None, row_heights=None, col_widths=None, flow_order='rd', **kwargs)[source]¶

Arrange submobjects in a grid.

Parameters:

rows (int | None) – The number of rows in the grid.
cols (int | None) – The number of columns in the grid.
buff (float | tuple[float, float]) – The gap between grid cells. To specify a different buffer in the horizontal and vertical directions, a tuple of two values can be given - (row, col).
cell_alignment (Vector3DLike) – The way each submobject is aligned in its grid cell.
row_alignments (str | None) – The vertical alignment for each row (top to bottom). Accepts the following characters: "u" - up, "c" - center, "d" - down.
col_alignments (str | None) – The horizontal alignment for each column (left to right). Accepts the following characters "l" - left, "c" - center, "r" - right.
row_heights (Iterable[float | None] | None) – Defines a list of heights for certain rows (top to bottom). If the list contains None, the corresponding row will fit its height automatically based on the highest element in that row.
col_widths (Iterable[float | None] | None) – Defines a list of widths for certain columns (left to right). If the list contains None, the corresponding column will fit its width automatically based on the widest element in that column.
flow_order (str) – The order in which submobjects fill the grid. Can be one of the following values: “rd”, “dr”, “ld”, “dl”, “ru”, “ur”, “lu”, “ul”. (“rd” -> fill rightwards then downwards)

Returns:

self

Return type:

Mobject

Raises:

ValueError – If rows and cols are too small to fit all submobjects.
ValueError – If cols, col_alignments and col_widths or rows, row_alignments and row_heights have mismatching sizes.

Notes

If only one of cols and rows is set implicitly, the other one will be chosen big enough to fit all submobjects. If neither is set, they will be chosen to be about the same, tending towards cols > rows (simply because videos are wider than they are high).

If both cell_alignment and row_alignments / col_alignments are defined, the latter has higher priority.

Examples

Example: ExampleBoxes ¶

from manim import *

class ExampleBoxes(Scene):
    def construct(self):
        boxes=VGroup(*[Square() for s in range(0,6)])
        boxes.arrange_in_grid(rows=2, buff=0.1)
        self.add(boxes)

class ExampleBoxes(Scene):
    def construct(self):
        boxes=VGroup(*[Square() for s in range(0,6)])
        boxes.arrange_in_grid(rows=2, buff=0.1)
        self.add(boxes)

Example: ArrangeInGrid ¶

from manim import *

class ArrangeInGrid(Scene):
    def construct(self):
        boxes = VGroup(*[
            Rectangle(WHITE, 0.5, 0.5).add(Text(str(i+1)).scale(0.5))
            for i in range(24)
        ])
        self.add(boxes)

        boxes.arrange_in_grid(
            buff=(0.25,0.5),
            col_alignments="lccccr",
            row_alignments="uccd",
            col_widths=[1, *[None]*4, 1],
            row_heights=[1, None, None, 1],
            flow_order="dr"
        )

class ArrangeInGrid(Scene):
    def construct(self):
        boxes = VGroup(*[
            Rectangle(WHITE, 0.5, 0.5).add(Text(str(i+1)).scale(0.5))
            for i in range(24)
        ])
        self.add(boxes)

        boxes.arrange_in_grid(
            buff=(0.25,0.5),
            col_alignments="lccccr",
            row_alignments="uccd",
            col_widths=[1, *[None]*4, 1],
            row_heights=[1, None, None, 1],
            flow_order="dr"
        )

arrange_submobjects(*args, **kwargs)[source]¶

Arrange the position of submobjects with a small buffer.

Examples

Example: ArrangeSumobjectsExample ¶

../_images/ArrangeSumobjectsExample-1.png

from manim import *

class ArrangeSumobjectsExample(Scene):
    def construct(self):
        s= VGroup(*[Dot().shift(i*0.1*RIGHT*np.random.uniform(-1,1)+UP*np.random.uniform(-1,1)) for i in range(0,15)])
        s.shift(UP).set_color(BLUE)
        s2= s.copy().set_color(RED)
        s2.arrange_submobjects()
        s2.shift(DOWN)
        self.add(s,s2)

class ArrangeSumobjectsExample(Scene):
    def construct(self):
        s= VGroup(*[Dot().shift(i*0.1*RIGHT*np.random.uniform(-1,1)+UP*np.random.uniform(-1,1)) for i in range(0,15)])
        s.shift(UP).set_color(BLUE)
        s2= s.copy().set_color(RED)
        s2.arrange_submobjects()
        s2.shift(DOWN)
        self.add(s,s2)

Return type:: Self

become(mobject, match_height=False, match_width=False, match_depth=False, match_center=False, stretch=False)[source]¶

Edit points, colors and submobjects to be identical to another Mobject

Note

If both match_height and match_width are True then the transformed Mobject will match the height first and then the width.

Parameters:

match_height (bool) – Whether or not to preserve the height of the original Mobject.
match_width (bool) – Whether or not to preserve the width of the original Mobject.
match_depth (bool) – Whether or not to preserve the depth of the original Mobject.
match_center (bool) – Whether or not to preserve the center of the original Mobject.
stretch (bool) – Whether or not to stretch the target mobject to match the the proportions of the original Mobject.
mobject (Mobject)

Return type:

Self

Examples

Example: BecomeScene ¶

from manim import *

class BecomeScene(Scene):
    def construct(self):
        circ = Circle(fill_color=RED, fill_opacity=0.8)
        square = Square(fill_color=BLUE, fill_opacity=0.2)
        self.add(circ)
        self.wait(0.5)
        circ.become(square)
        self.wait(0.5)

class BecomeScene(Scene):
    def construct(self):
        circ = Circle(fill_color=RED, fill_opacity=0.8)
        square = Square(fill_color=BLUE, fill_opacity=0.2)
        self.add(circ)
        self.wait(0.5)
        circ.become(square)
        self.wait(0.5)

The following examples illustrate how mobject measurements change when using the match_... and stretch arguments. We start with a rectangle that is 2 units high and 4 units wide, which we want to turn into a circle of radius 3:

>>> from manim import Rectangle, Circle
>>> import numpy as np
>>> rect = Rectangle(height=2, width=4)
>>> circ = Circle(radius=3)

With stretch=True, the target circle is deformed to match the proportions of the rectangle, which results in the target mobject being an ellipse with height 2 and width 4. We can check that the resulting points satisfy the ellipse equation \(x^2/a^2 + y^2/b^2 = 1\) with \(a = 4/2\) and \(b = 2/2\) being the semi-axes:

>>> result = rect.copy().become(circ, stretch=True)
>>> result.height, result.width
(np.float64(2.0), np.float64(4.0))
>>> ellipse_points = np.array(result.get_anchors())
>>> ellipse_eq = np.sum(ellipse_points**2 * [1/4, 1, 0], axis=1)
>>> np.allclose(ellipse_eq, 1)
True

With match_height=True and match_width=True the circle is scaled such that the height or the width of the rectangle will be preserved, respectively. The points of the resulting mobject satisfy the circle equation \(x^2 + y^2 = r^2\) for the corresponding radius \(r\):

>>> result = rect.copy().become(circ, match_height=True)
>>> result.height, result.width
(np.float64(2.0), np.float64(2.0))
>>> circle_points = np.array(result.get_anchors())
>>> circle_eq = np.sum(circle_points**2, axis=1)
>>> np.allclose(circle_eq, 1)
True
>>> result = rect.copy().become(circ, match_width=True)
>>> result.height, result.width
(np.float64(4.0), np.float64(4.0))
>>> circle_points = np.array(result.get_anchors())
>>> circle_eq = np.sum(circle_points**2, axis=1)
>>> np.allclose(circle_eq, 2**2)
True

With match_center=True, the resulting mobject is moved such that its center is the same as the center of the original mobject:

>>> rect = rect.shift(np.array([0, 1, 0]))
>>> np.allclose(rect.get_center(), circ.get_center())
False
>>> result = rect.copy().become(circ, match_center=True)
>>> np.allclose(rect.get_center(), result.get_center())
True

See also

align_data(), interpolate_color()

center()[source]¶

Moves the center of the mobject to the center of the scene.

Returns:: The centered mobject.
Return type:: Mobject

clear_updaters(recursive=True)[source]¶

Remove every updater.

Parameters:: recursive (bool) – Whether to recursively call clear_updaters on all submobjects.
Returns:: self
Return type:: Mobject

copy()[source]¶

Create and return an identical copy of the Mobject including all submobjects.

Returns:: The copy.
Return type:: Mobject

Note

The clone is initially not visible in the Scene, even if the original was.

property depth: float¶

The depth of the mobject.

Return type:: float

See also

length_over_dim()

family_members_with_points()[source]¶

Filters the list of family members (generated by get_family()) to include only mobjects with points.

Returns:: A list of mobjects that have points.
Return type:: list[Mobject]

Examples

>>> from manim import Square, Rectangle, VGroup, Group, Mobject, VMobject
>>> s, r, m, v = Square(), Rectangle(), Mobject(), VMobject()
>>> vg = VGroup(s, r)
>>> gr = Group(vg, m, v)
>>> gr.family_members_with_points()
[Square, Rectangle]

See also

get_family()

flip(axis=array([0., 1., 0.]), *, about_point=None, about_edge=None)[source]¶

Flips/Mirrors an mobject about its center.

Examples

Example: FlipExample ¶

from manim import *

class FlipExample(Scene):
    def construct(self):
        s= Line(LEFT, RIGHT+UP).shift(4*LEFT)
        self.add(s)
        s2= s.copy().flip()
        self.add(s2)

class FlipExample(Scene):
    def construct(self):
        s= Line(LEFT, RIGHT+UP).shift(4*LEFT)
        self.add(s)
        s2= s.copy().flip()
        self.add(s2)

Parameters:

axis (Vector3DLike)
about_point (Point3DLike | None)
about_edge (Vector3DLike | None)

Return type:

Self

generate_points()[source]¶

Initializes points and therefore the shape.

Gets called upon creation. This is an empty method that can be implemented by subclasses.

Return type:: object

get_all_points()[source]¶

Return all points from this mobject and all submobjects.

May contain duplicates; the order is in a depth-first (pre-order) traversal of the submobjects.

Return type:: Point3D_Array

get_bottom()[source]¶

Get bottom Point3Ds of a box bounding the Mobject

Return type:: Point3D

get_center()[source]¶

Get center Point3Ds

Return type:: Point3D

get_color()[source]¶

Returns the color of the Mobject

Examples

>>> from manim import Square, RED
>>> Square(color=RED).get_color() == RED
True

Return type:: ManimColor

get_coord(dim, direction=array([0., 0., 0.]))[source]¶

Meant to generalize get_x, get_y and get_z

Parameters:

dim (int)
direction (Vector3DLike)

Return type:

float

get_corner(direction)[source]¶

Get corner Point3Ds for certain direction.

Parameters:: direction (Vector3DLike)
Return type:: Point3D

get_critical_point(direction)[source]¶

Picture a box bounding the Mobject. Such a box has 9 ‘critical points’: 4 corners, 4 edge center, the center. This returns one of them, along the given direction.

sample = Arc(start_angle=PI / 7, angle=PI / 5)

# These are all equivalent
max_y_1 = sample.get_top()[1]
max_y_2 = sample.get_critical_point(UP)[1]
max_y_3 = sample.get_extremum_along_dim(dim=1, key=1)

Parameters:: direction (Vector3DLike)
Return type:: Point3D

get_edge_center(direction)[source]¶

Get edge Point3Ds for certain direction.

Parameters:: direction (Vector3DLike)
Return type:: Point3D

get_end()[source]¶

Returns the point, where the stroke that surrounds the Mobject ends.

Return type:: Point3D

get_family(recurse=True)[source]¶

Lists all mobjects in the hierarchy (family) of the given mobject, including the mobject itself and all its submobjects recursively.

Parameters:: recurse (bool) – Just for consistency with get_family method in OpenGLMobject.
Returns:: A list of mobjects in the family of the given mobject.
Return type:: list[Mobject]

Examples

>>> from manim import Square, Rectangle, VGroup, Group, Mobject, VMobject
>>> s, r, m, v = Square(), Rectangle(), Mobject(), VMobject()
>>> vg = VGroup(s, r)
>>> gr = Group(vg, m, v)
>>> gr.get_family()
[Group, VGroup(Square, Rectangle), Square, Rectangle, Mobject, VMobject]

get_left()[source]¶

Get left Point3Ds of a box bounding the Mobject

Return type:: Point3D

get_merged_array(array_attr)[source]¶

Return all of a given attribute from this mobject and all submobjects.

May contain duplicates; the order is in a depth-first (pre-order) traversal of the submobjects.

Parameters:: array_attr (str)
Return type:: ndarray

get_midpoint()[source]¶

Get Point3Ds of the middle of the path that forms the Mobject.

Examples

Example: AngleMidPoint ¶

from manim import *

class AngleMidPoint(Scene):
    def construct(self):
        line1 = Line(ORIGIN, 2*RIGHT)
        line2 = Line(ORIGIN, 2*RIGHT).rotate_about_origin(80*DEGREES)

        a = Angle(line1, line2, radius=1.5, other_angle=False)
        d = Dot(a.get_midpoint()).set_color(RED)

        self.add(line1, line2, a, d)
        self.wait()

class AngleMidPoint(Scene):
    def construct(self):
        line1 = Line(ORIGIN, 2*RIGHT)
        line2 = Line(ORIGIN, 2*RIGHT).rotate_about_origin(80*DEGREES)

        a = Angle(line1, line2, radius=1.5, other_angle=False)
        d = Dot(a.get_midpoint()).set_color(RED)

        self.add(line1, line2, a, d)
        self.wait()

Return type:: Point3D

static get_mobject_type_class()[source]¶

Return the base class of this mobject type.

Return type:: type[Mobject]

get_nadir()[source]¶

Get nadir (opposite the zenith) Point3Ds of a box bounding a 3D Mobject.

Return type:: Point3D

get_point_mobject(center=None)[source]¶: The simplest Mobject to be transformed to or from self. Should by a point of the appropriate type

get_right()[source]¶

Get right Point3Ds of a box bounding the Mobject

Return type:: Point3D

get_start()[source]¶

Returns the point, where the stroke that surrounds the Mobject starts.

Return type:: Point3D

get_start_and_end()[source]¶

Returns starting and ending point of a stroke as a tuple.

Return type:: tuple[TypeAliasForwardRef(‘~manim.typing.Point3D’), TypeAliasForwardRef(‘~manim.typing.Point3D’)]

get_time_based_updaters()[source]¶

Return all updaters using the dt parameter.

The updaters use this parameter as the input for difference in time.

Returns:: The list of time based updaters.
Return type:: List[Callable]

get_top()[source]¶

Get top Point3Ds of a box bounding the Mobject

Return type:: Point3D

get_updaters()[source]¶

Return all updaters.

Returns:: The list of updaters.
Return type:: List[Callable]

get_x(direction=array([0., 0., 0.]))[source]¶

Returns x Point3D of the center of the Mobject as float

Parameters:: direction (Vector3DLike)
Return type:: float

get_y(direction=array([0., 0., 0.]))[source]¶

Returns y Point3D of the center of the Mobject as float

Parameters:: direction (Vector3DLike)
Return type:: float

get_z(direction=array([0., 0., 0.]))[source]¶

Returns z Point3D of the center of the Mobject as float

Parameters:: direction (Vector3DLike)
Return type:: float

get_zenith()[source]¶

Get zenith Point3Ds of a box bounding a 3D Mobject.

Return type:: Point3D

has_no_points()[source]¶

Check if Mobject does not contains points.

Return type:: bool

has_points()[source]¶

Check if Mobject contains points.

Return type:: bool

has_time_based_updater()[source]¶

Test if self has a time based updater.

Returns:: True if at least one updater uses the dt parameter, False otherwise.
Return type:: bool

See also

get_time_based_updaters()

property height: float¶

The height of the mobject.

Return type:: float

Examples

Example: HeightExample ¶

from manim import *

class HeightExample(Scene):
    def construct(self):
        decimal = DecimalNumber().to_edge(UP)
        rect = Rectangle(color=BLUE)
        rect_copy = rect.copy().set_stroke(GRAY, opacity=0.5)

        decimal.add_updater(lambda d: d.set_value(rect.height))

        self.add(rect_copy, rect, decimal)
        self.play(rect.animate.set(height=5))
        self.wait()

class HeightExample(Scene):
    def construct(self):
        decimal = DecimalNumber().to_edge(UP)
        rect = Rectangle(color=BLUE)
        rect_copy = rect.copy().set_stroke(GRAY, opacity=0.5)

        decimal.add_updater(lambda d: d.set_value(rect.height))

        self.add(rect_copy, rect, decimal)
        self.play(rect.animate.set(height=5))
        self.wait()

See also

length_over_dim()

init_colors()[source]¶

Initializes the colors.

Gets called upon creation. This is an empty method that can be implemented by subclasses.

Return type:: object

insert(index, mobject)[source]¶

Inserts a mobject at a specific position into self.submobjects

Effectively just calls self.submobjects.insert(index, mobject), where self.submobjects is a list.

Highly adapted from Mobject.add.

Parameters:

index (int) – The index at which
mobject (Mobject) – The mobject to be inserted.

Return type:

None

interpolate(mobject1, mobject2, alpha, path_func=<function interpolate>)[source]¶

Turns this Mobject into an interpolation between mobject1 and mobject2.

The interpolation is applied to the points and color of the mobject.

Parameters:

mobject1 (Mobject) – The starting Mobject.
mobject2 (Mobject) – The target Mobject.
alpha (float) – Interpolation factor between 0 (at mobject1) and 1 (at mobject2).
path_func (PathFuncType) – The function defining the interpolation path. Defaults to a straight path.

Returns:

self

Return type:

Mobject

Note

Both mobjects must have the same number of points. If not, this will raise an error. Use align_points() to match point counts beforehand if needed.
This method is used internally by the Transform animation to interpolate between two mobjects during a transformation.

Examples

Example: InterpolateExample ¶

from manim import *

class InterpolateExample(Scene):
    def construct(self):
        # No need for point alignment:
        dotL = Dot(color=DARK_GREY).to_edge(LEFT)
        dotR = Dot(color=YELLOW).scale(10).to_edge(RIGHT)
        dotMid1 = VMobject().interpolate(dotL, dotR, alpha=0.1)
        dotMid2 = VMobject().interpolate(dotL, dotR, alpha=0.25)
        dotMid3 = VMobject().interpolate(dotL, dotR, alpha=0.5)
        dotMid4 = VMobject().interpolate(dotL, dotR, alpha=0.75)
        dots = VGroup(dotL, dotR, dotMid1, dotMid2, dotMid3, dotMid4)

        # Needs point alignment:
        line = Line(ORIGIN, UP).to_edge(LEFT)
        sq = Square(color=RED, fill_opacity=1, stroke_color=BLUE).to_edge(RIGHT)
        line.align_points(sq)
        mid1 = VMobject().interpolate(line, sq, alpha=0.1)
        mid2 = VMobject().interpolate(line, sq, alpha=0.25)
        mid3 = VMobject().interpolate(line, sq, alpha=0.5)
        mid4 = VMobject().interpolate(line, sq, alpha=0.75)
        linesquares = VGroup(line, sq, mid1, mid2, mid3, mid4)

        self.add(VGroup(dots, linesquares).arrange(DOWN, buff=1))

class InterpolateExample(Scene):
    def construct(self):
        # No need for point alignment:
        dotL = Dot(color=DARK_GREY).to_edge(LEFT)
        dotR = Dot(color=YELLOW).scale(10).to_edge(RIGHT)
        dotMid1 = VMobject().interpolate(dotL, dotR, alpha=0.1)
        dotMid2 = VMobject().interpolate(dotL, dotR, alpha=0.25)
        dotMid3 = VMobject().interpolate(dotL, dotR, alpha=0.5)
        dotMid4 = VMobject().interpolate(dotL, dotR, alpha=0.75)
        dots = VGroup(dotL, dotR, dotMid1, dotMid2, dotMid3, dotMid4)

        # Needs point alignment:
        line = Line(ORIGIN, UP).to_edge(LEFT)
        sq = Square(color=RED, fill_opacity=1, stroke_color=BLUE).to_edge(RIGHT)
        line.align_points(sq)
        mid1 = VMobject().interpolate(line, sq, alpha=0.1)
        mid2 = VMobject().interpolate(line, sq, alpha=0.25)
        mid3 = VMobject().interpolate(line, sq, alpha=0.5)
        mid4 = VMobject().interpolate(line, sq, alpha=0.75)
        linesquares = VGroup(line, sq, mid1, mid2, mid3, mid4)

        self.add(VGroup(dots, linesquares).arrange(DOWN, buff=1))

See also

Transform, align_points(), interpolate_color()

invert(recursive=False)[source]¶

Inverts the list of submobjects.

Parameters:: recursive (bool) – If True, all submobject lists of this mobject’s family are inverted.
Return type:: None

Examples

Example: InvertSumobjectsExample ¶

from manim import *

class InvertSumobjectsExample(Scene):
    def construct(self):
        s = VGroup(*[Dot().shift(i*0.1*RIGHT) for i in range(-20,20)])
        s2 = s.copy()
        s2.invert()
        s2.shift(DOWN)
        self.play(Write(s), Write(s2))

class InvertSumobjectsExample(Scene):
    def construct(self):
        s = VGroup(*[Dot().shift(i*0.1*RIGHT) for i in range(-20,20)])
        s2 = s.copy()
        s2.invert()
        s2.shift(DOWN)
        self.play(Write(s), Write(s2))

length_over_dim(dim)[source]¶

Measure the length of an Mobject in a certain direction.

Parameters:: dim (int)
Return type:: float

match_color(mobject)[source]¶

Match the color with the color of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_coord(mobject, dim, direction=array([0., 0., 0.]))[source]¶

Match the Point3Ds with the Point3Ds of another Mobject.

Parameters:

mobject (Mobject)
dim (int)
direction (Vector3DLike)

Return type:

Self

match_depth(mobject, **kwargs)[source]¶

Match the depth with the depth of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_dim_size(mobject, dim, **kwargs)[source]¶

Match the specified dimension with the dimension of another Mobject.

Parameters:

mobject (Mobject)
dim (int)

Return type:

Self

match_height(mobject, **kwargs)[source]¶

Match the height with the height of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_points(mobject, copy_submobjects=True)[source]¶

Edit points, positions, and submobjects to be identical to another Mobject, while keeping the style unchanged.

Examples

Example: MatchPointsScene ¶

from manim import *

class MatchPointsScene(Scene):
    def construct(self):
        circ = Circle(fill_color=RED, fill_opacity=0.8)
        square = Square(fill_color=BLUE, fill_opacity=0.2)
        self.add(circ)
        self.wait(0.5)
        self.play(circ.animate.match_points(square))
        self.wait(0.5)

class MatchPointsScene(Scene):
    def construct(self):
        circ = Circle(fill_color=RED, fill_opacity=0.8)
        square = Square(fill_color=BLUE, fill_opacity=0.2)
        self.add(circ)
        self.wait(0.5)
        self.play(circ.animate.match_points(square))
        self.wait(0.5)

Parameters:

mobject (Mobject)
copy_submobjects (bool)

Return type:

Self

match_updaters(mobject)[source]¶

Match the updaters of the given mobject.

Parameters:: mobject (Mobject) – The mobject whose updaters get matched.
Returns:: self
Return type:: Mobject

Note

All updaters from submobjects are removed, but only updaters of the given mobject are matched, not those of it’s submobjects.

See also

add_updater(), clear_updaters()

match_width(mobject, **kwargs)[source]¶

Match the width with the width of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_x(mobject, direction=array([0., 0., 0.]))[source]¶

Match x coord. to the x coord. of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_y(mobject, direction=array([0., 0., 0.]))[source]¶

Match y coord. to the x coord. of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

match_z(mobject, direction=array([0., 0., 0.]))[source]¶

Match z coord. to the x coord. of another Mobject.

Parameters:: mobject (Mobject)
Return type:: Self

move_to(point_or_mobject, aligned_edge=array([0., 0., 0.]), coor_mask=array([1, 1, 1]))[source]¶

Move center of the Mobject to certain Point3D.

Parameters:

point_or_mobject (Point3DLike | Mobject)
aligned_edge (Vector3DLike)
coor_mask (Vector3DLike)

Return type:

Self

next_to(mobject_or_point, direction=array([1., 0., 0.]), buff=0.25, aligned_edge=array([0., 0., 0.]), submobject_to_align=None, index_of_submobject_to_align=None, coor_mask=array([1, 1, 1]))[source]¶

Move this Mobject next to another’s Mobject or Point3D.

Examples

Example: GeometricShapes ¶

from manim import *

class GeometricShapes(Scene):
    def construct(self):
        d = Dot()
        c = Circle()
        s = Square()
        t = Triangle()
        d.next_to(c, RIGHT)
        s.next_to(c, LEFT)
        t.next_to(c, DOWN)
        self.add(d, c, s, t)

class GeometricShapes(Scene):
    def construct(self):
        d = Dot()
        c = Circle()
        s = Square()
        t = Triangle()
        d.next_to(c, RIGHT)
        s.next_to(c, LEFT)
        t.next_to(c, DOWN)
        self.add(d, c, s, t)

Parameters:

mobject_or_point (Mobject | Point3DLike)
direction (Vector3DLike)
buff (float)
aligned_edge (Vector3DLike)
submobject_to_align (Mobject | None)
index_of_submobject_to_align (int | None)
coor_mask (Vector3DLike)

Return type:

Self

null_point_align(mobject)[source]¶

If a Mobject with points is being aligned to one without, treat both as groups, and push the one with points into its own submobjects list.

Returns:: self
Return type:: Mobject
Parameters:: mobject (Mobject)

reduce_across_dimension(reduce_func, dim)[source]¶

Find the min or max value from a dimension across all points in this and submobjects.

Parameters:

reduce_func (Callable)
dim (int)

remove(*mobjects)[source]¶

Remove submobjects.

The mobjects are removed from submobjects, if they exist.

Subclasses of mobject may implement - and -= dunder methods.

Parameters:: mobjects (Mobject) – The mobjects to remove.
Returns:: self
Return type:: Mobject

See also

add()

remove_updater(update_function)[source]¶

Remove an updater.

If the same updater is applied multiple times, every instance gets removed.

Parameters:: update_function (Updater) – The update function to be removed.
Returns:: self
Return type:: Mobject

repeat(count)[source]¶

This can make transition animations nicer

Parameters:: count (int)
Return type:: Self

reset_points()[source]¶

Sets points to be an empty array.

Return type:: Self

restore()[source]¶

Restores the state that was previously saved with save_state().

Return type:: Self

resume_updating(recursive=True)[source]¶

Enable updating from updaters and animations.

Parameters:: recursive (bool) – Whether to recursively enable updating on all submobjects.
Returns:: self
Return type:: Mobject

See also

suspend_updating(), add_updater()

rotate(angle, axis=array([0., 0., 1.]), *, about_point=None, about_edge=None)[source]¶

Rotates the Mobject around a specified axis and point.

Parameters:

angle (float) – The angle of rotation in radians. Predefined constants such as DEGREES can also be used to specify the angle in degrees.
axis (Vector3DLike) – The rotation axis (see Rotating for more).
about_point (Point3DLike | None) – The point about which the mobject rotates. If None, rotation occurs around the center of the mobject.
about_edge (Vector3DLike | None) – The edge about which to apply the scaling.

Returns:

self (for method chaining)

Return type:

Mobject

Note

To animate a rotation, use Rotating or Rotate instead of .animate.rotate(...). The .animate.rotate(...) syntax only applies a transformation from the initial state to the final rotated state (interpolation between the two states), without showing proper rotational motion based on the angle (from 0 to the given angle).

Examples

Example: RotateMethodExample ¶

from manim import *

class RotateMethodExample(Scene):
    def construct(self):
        circle = Circle(radius=1, color=BLUE)
        line = Line(start=ORIGIN, end=RIGHT)
        arrow1 = Arrow(start=ORIGIN, end=RIGHT, buff=0, color=GOLD)
        group1 = VGroup(circle, line, arrow1)

        group2 = group1.copy()
        arrow2 = group2[2]
        arrow2.rotate(angle=PI / 4, about_point=arrow2.get_start())

        group3 = group1.copy()
        arrow3 = group3[2]
        arrow3.rotate(angle=120 * DEGREES, about_point=arrow3.get_start())

        self.add(VGroup(group1, group2, group3).arrange(RIGHT, buff=1))

class RotateMethodExample(Scene):
    def construct(self):
        circle = Circle(radius=1, color=BLUE)
        line = Line(start=ORIGIN, end=RIGHT)
        arrow1 = Arrow(start=ORIGIN, end=RIGHT, buff=0, color=GOLD)
        group1 = VGroup(circle, line, arrow1)

        group2 = group1.copy()
        arrow2 = group2[2]
        arrow2.rotate(angle=PI / 4, about_point=arrow2.get_start())

        group3 = group1.copy()
        arrow3 = group3[2]
        arrow3.rotate(angle=120 * DEGREES, about_point=arrow3.get_start())

        self.add(VGroup(group1, group2, group3).arrange(RIGHT, buff=1))

See also

Rotating, Rotate, animate, apply_points_function_about_point()

rotate_about_origin(angle, axis=array([0., 0., 1.]))[source]¶

Rotates the Mobject about the ORIGIN, which is at [0,0,0].

Parameters:

angle (float)
axis (Vector3DLike)

Return type:

Self

save_image(name=None)[source]¶

Saves an image of only this Mobject at its position to a png file.

Parameters:: name (str | None)
Return type:: None

save_state()[source]¶

Save the current state (position, color & size). Can be restored with restore().

Return type:: Self

scale(scale_factor, *, about_point=None, about_edge=None)[source]¶

Scale the size by a factor.

Default behavior is to scale about the center of the mobject.

Parameters:

scale_factor (float) – The scaling factor \(\alpha\). If \(0 < |\alpha| < 1\), the mobject will shrink, and for \(|\alpha| > 1\) it will grow. Furthermore, if \(\alpha < 0\), the mobject is also flipped.
about_point (Point3DLike | None) – The point about which to apply the scaling.
about_edge (Vector3DLike | None) – The edge about which to apply the scaling.

Returns:

self

Return type:

Mobject

Examples

Example: MobjectScaleExample ¶

from manim import *

class MobjectScaleExample(Scene):
    def construct(self):
        f1 = Text("F")
        f2 = Text("F").scale(2)
        f3 = Text("F").scale(0.5)
        f4 = Text("F").scale(-1)

        vgroup = VGroup(f1, f2, f3, f4).arrange(6 * RIGHT)
        self.add(vgroup)

class MobjectScaleExample(Scene):
    def construct(self):
        f1 = Text("F")
        f2 = Text("F").scale(2)
        f3 = Text("F").scale(0.5)
        f4 = Text("F").scale(-1)

        vgroup = VGroup(f1, f2, f3, f4).arrange(6 * RIGHT)
        self.add(vgroup)

See also

move_to()

scale_to_fit_depth(depth, **kwargs)[source]¶

Scales the Mobject to fit a depth while keeping width/height proportional.

Parameters:: depth (float)
Return type:: Self

scale_to_fit_height(height, **kwargs)[source]¶

Scales the Mobject to fit a height while keeping width/depth proportional.

Returns:: self
Return type:: Mobject
Parameters:: height (float)

Examples

>>> from manim import *
>>> sq = Square()
>>> sq.width
np.float64(2.0)
>>> sq.scale_to_fit_height(5)
Square
>>> sq.height
np.float64(5.0)
>>> sq.width
np.float64(5.0)

scale_to_fit_width(width, **kwargs)[source]¶

Scales the Mobject to fit a width while keeping height/depth proportional.

Returns:: self
Return type:: Mobject
Parameters:: width (float)

Examples

>>> from manim import *
>>> sq = Square()
>>> sq.height
np.float64(2.0)
>>> sq.scale_to_fit_width(5)
Square
>>> sq.width
np.float64(5.0)
>>> sq.height
np.float64(5.0)

set(**kwargs)[source]¶

Sets attributes.

I.e. my_mobject.set(foo=1) applies my_mobject.foo = 1.

This is a convenience to be used along with animate to animate setting attributes.

In addition to this method, there is a compatibility layer that allows get_* and set_* methods to get and set generic attributes. For instance:

>>> mob = Mobject()
>>> mob.set_foo(0)
Mobject
>>> mob.get_foo()
0
>>> mob.foo
0

This compatibility layer does not interfere with any get_* or set_* methods that are explicitly defined.

Warning

This compatibility layer is for backwards compatibility and is not guaranteed to stay around. Where applicable, please prefer getting/setting attributes normally or with the set() method.

Parameters:: **kwargs – The attributes and corresponding values to set.
Returns:: self
Return type:: Mobject

Examples

>>> mob = Mobject()
>>> mob.set(foo=0)
Mobject
>>> mob.foo
0

set_color(color=ManimColor('#FFFF00'), family=True)[source]¶

Condition is function which takes in one arguments, (x, y, z). Here it just recurses to submobjects, but in subclasses this should be further implemented based on the the inner workings of color

Parameters:

color (ParsableManimColor)
family (bool)

Return type:

Self

set_color_by_gradient(*colors)[source]¶

Parameters:

colors (ParsableManimColor) – The colors to use for the gradient. Use like set_color_by_gradient(RED, BLUE, GREEN).
ManimColor.parse(color) (self.color =)
self (return)

Return type:

Self

classmethod set_default(**kwargs)[source]¶

Sets the default values of keyword arguments.

If this method is called without any additional keyword arguments, the original default values of the initialization method of this class are restored.

Parameters:: kwargs – Passing any keyword argument will update the default values of the keyword arguments of the initialization function of this class.
Return type:: None

Examples

>>> from manim import Square, GREEN
>>> Square.set_default(color=GREEN, fill_opacity=0.25)
>>> s = Square(); s.color, s.fill_opacity
(ManimColor('#83C167'), 0.25)
>>> Square.set_default()
>>> s = Square(); s.color, s.fill_opacity
(ManimColor('#FFFFFF'), 0.0)

Example: ChangedDefaultTextcolor ¶

../_images/ChangedDefaultTextcolor-1.png

from manim import *

config.background_color = WHITE

class ChangedDefaultTextcolor(Scene):
    def construct(self):
        Text.set_default(color=BLACK)
        self.add(Text("Changing default values is easy!"))

        # we revert the colour back to the default to prevent a bug in the docs.
        Text.set_default(color=WHITE)

config.background_color = WHITE

class ChangedDefaultTextcolor(Scene):
    def construct(self):
        Text.set_default(color=BLACK)
        self.add(Text("Changing default values is easy!"))

        # we revert the colour back to the default to prevent a bug in the docs.
        Text.set_default(color=WHITE)

set_x(x, direction=array([0., 0., 0.]))[source]¶

Set x value of the center of the Mobject (int or float)

Parameters:

x (float)
direction (Vector3DLike)

Return type:

Self

set_y(y, direction=array([0., 0., 0.]))[source]¶

Set y value of the center of the Mobject (int or float)

Parameters:

y (float)
direction (Vector3DLike)

Return type:

Self

set_z(z, direction=array([0., 0., 0.]))[source]¶

Set z value of the center of the Mobject (int or float)

Parameters:

z (float)
direction (Vector3DLike)

Return type:

Self

set_z_index(z_index_value, family=True)[source]¶

Sets the Mobject’s z_index to the value specified in z_index_value.

Parameters:

z_index_value (float) – The new value of z_index set.
family (bool) – If True, the z_index value of all submobjects is also set.

Returns:

The Mobject itself, after z_index is set. For chaining purposes. (Returns self.)

Return type:

Mobject

Examples

Example: SetZIndex ¶

from manim import *

class SetZIndex(Scene):
    def construct(self):
        text = Text('z_index = 3', color = PURE_RED).shift(UP).set_z_index(3)
        square = Square(2, fill_opacity=1).set_z_index(2)
        tex = Tex(r'zIndex = 1', color = PURE_BLUE).shift(DOWN).set_z_index(1)
        circle = Circle(radius = 1.7, color = GREEN, fill_opacity = 1) # z_index = 0

        # Displaying order is now defined by z_index values
        self.add(text)
        self.add(square)
        self.add(tex)
        self.add(circle)

class SetZIndex(Scene):
    def construct(self):
        text = Text('z_index = 3', color = PURE_RED).shift(UP).set_z_index(3)
        square = Square(2, fill_opacity=1).set_z_index(2)
        tex = Tex(r'zIndex = 1', color = PURE_BLUE).shift(DOWN).set_z_index(1)
        circle = Circle(radius = 1.7, color = GREEN, fill_opacity = 1) # z_index = 0

        # Displaying order is now defined by z_index values
        self.add(text)
        self.add(square)
        self.add(tex)
        self.add(circle)

set_z_index_by_z_Point3D()[source]¶

Sets the Mobject’s z Point3D to the value of z_index.

Returns:: The Mobject itself, after z_index is set. (Returns self.)
Return type:: Mobject

shift(*vectors)[source]¶

Shift by the given vectors.

Parameters:: vectors (Vector3DLike) – Vectors to shift by. If multiple vectors are given, they are added together.
Returns:: self
Return type:: Mobject

See also

move_to()

shuffle(recursive=False)[source]¶

Shuffles the list of submobjects.

Parameters:: recursive (bool)
Return type:: None

shuffle_submobjects(*args, **kwargs)[source]¶

Shuffles the order of submobjects

Examples

Example: ShuffleSubmobjectsExample ¶

from manim import *

class ShuffleSubmobjectsExample(Scene):
    def construct(self):
        s= VGroup(*[Dot().shift(i*0.1*RIGHT) for i in range(-20,20)])
        s2= s.copy()
        s2.shuffle_submobjects()
        s2.shift(DOWN)
        self.play(Write(s), Write(s2))

class ShuffleSubmobjectsExample(Scene):
    def construct(self):
        s= VGroup(*[Dot().shift(i*0.1*RIGHT) for i in range(-20,20)])
        s2= s.copy()
        s2.shuffle_submobjects()
        s2.shift(DOWN)
        self.play(Write(s), Write(s2))

Return type:: None

sort(point_to_num_func=<function Mobject.<lambda>>, submob_func=None)[source]¶

Sorts the list of submobjects by a function defined by submob_func.

Parameters:

point_to_num_func (Callable[[Point3DLike], float])
submob_func (Callable[[Mobject], Any] | None)

Return type:

Self

sort_submobjects(*args, **kwargs)[source]¶

Sort the submobjects

Return type:: Self

stretch_to_fit_depth(depth, **kwargs)[source]¶

Stretches the Mobject to fit a depth, not keeping width/height proportional.

Parameters:: depth (float)
Return type:: Self

stretch_to_fit_height(height, **kwargs)[source]¶

Stretches the Mobject to fit a height, not keeping width/depth proportional.

Returns:: self
Return type:: Mobject
Parameters:: height (float)

Examples

>>> from manim import *
>>> sq = Square()
>>> sq.width
np.float64(2.0)
>>> sq.stretch_to_fit_height(5)
Square
>>> sq.height
np.float64(5.0)
>>> sq.width
np.float64(2.0)

stretch_to_fit_width(width, **kwargs)[source]¶

Stretches the Mobject to fit a width, not keeping height/depth proportional.

Returns:: self
Return type:: Mobject
Parameters:: width (float)

Examples

>>> from manim import *
>>> sq = Square()
>>> sq.height
np.float64(2.0)
>>> sq.stretch_to_fit_width(5)
Square
>>> sq.width
np.float64(5.0)
>>> sq.height
np.float64(2.0)

suspend_updating(recursive=True)[source]¶

Disable updating from updaters and animations.

Parameters:: recursive (bool) – Whether to recursively suspend updating on all submobjects.
Returns:: self
Return type:: Mobject

See also

resume_updating(), add_updater()

to_corner(corner=array([-1., -1., 0.]), buff=0.5)[source]¶

Moves this Mobject to the given corner of the screen.

Returns:

The newly positioned mobject.

Return type:

Mobject

Parameters:

corner (Vector3DLike)
buff (float)

Examples

Example: ToCornerExample ¶

from manim import *

class ToCornerExample(Scene):
    def construct(self):
        c = Circle()
        c.to_corner(UR)
        t = Tex("To the corner!")
        t2 = MathTex("x^3").shift(DOWN)
        self.add(c,t,t2)
        t.to_corner(DL, buff=0)
        t2.to_corner(UL, buff=1.5)

class ToCornerExample(Scene):
    def construct(self):
        c = Circle()
        c.to_corner(UR)
        t = Tex("To the corner!")
        t2 = MathTex("x^3").shift(DOWN)
        self.add(c,t,t2)
        t.to_corner(DL, buff=0)
        t2.to_corner(UL, buff=1.5)

to_edge(edge=array([-1., 0., 0.]), buff=0.5)[source]¶

Moves this Mobject to the given edge of the screen, without affecting its position in the other dimension.

Returns:

The newly positioned mobject.

Return type:

Mobject

Parameters:

edge (Vector3DLike)
buff (float)

Examples

Example: ToEdgeExample ¶

from manim import *

class ToEdgeExample(Scene):
    def construct(self):
        tex_top = Tex("I am at the top!")
        tex_top.to_edge(UP)
        tex_side = Tex("I am moving to the side!")
        c = Circle().shift(2*DOWN)
        self.add(tex_top, tex_side, c)
        tex_side.to_edge(LEFT)
        c.to_edge(RIGHT, buff=0)

class ToEdgeExample(Scene):
    def construct(self):
        tex_top = Tex("I am at the top!")
        tex_top.to_edge(UP)
        tex_side = Tex("I am moving to the side!")
        c = Circle().shift(2*DOWN)
        self.add(tex_top, tex_side, c)
        tex_side.to_edge(LEFT)
        c.to_edge(RIGHT, buff=0)

update(dt=0, recursive=True)[source]¶

Apply all updaters.

Does nothing if updating is suspended.

Parameters:

dt (float) – The parameter dt to pass to the update functions. Usually this is the time in seconds since the last call of update.
recursive (bool) – Whether to recursively update all submobjects.

Returns:

self

Return type:

Mobject

See also

add_updater(), get_updaters()

property width: float¶

The width of the mobject.

Return type:: float

Examples

Example: WidthExample ¶

from manim import *

class WidthExample(Scene):
    def construct(self):
        decimal = DecimalNumber().to_edge(UP)
        rect = Rectangle(color=BLUE)
        rect_copy = rect.copy().set_stroke(GRAY, opacity=0.5)

        decimal.add_updater(lambda d: d.set_value(rect.width))

        self.add(rect_copy, rect, decimal)
        self.play(rect.animate.set(width=7))
        self.wait()

class WidthExample(Scene):
    def construct(self):
        decimal = DecimalNumber().to_edge(UP)
        rect = Rectangle(color=BLUE)
        rect_copy = rect.copy().set_stroke(GRAY, opacity=0.5)

        decimal.add_updater(lambda d: d.set_value(rect.width))

        self.add(rect_copy, rect, decimal)
        self.play(rect.animate.set(width=7))
        self.wait()

See also

length_over_dim()
